Binary Search Tree (BST)

Binary Search Tree
Binary Search Tree

In this tutorial, you learn how Binary Search Tree functions. Additionally, you will discover working instances of Binary Search Tree in C, C++, Java, and Python.

What is a Binary Search Tree?

The binary search tree is an advanced algorithm used for analyzing the node, its left and right branches, which are displayed in a tree structure and returning the worth. The BST is formulated on the architecture of an essential binary search algorithm; thus it enables quicker lookups, insertions, and removals of nodes. This makes the program really quick and exact.

A binary search tree is a data structure that rapidly allows us to keep an arranged list of numbers.

• It is known as a binary tree because each tree node has a maximum of two children.

• It is known as a search tree since it tends to be used to look for the presence of a number in O(log(n)) time.

The properties that different a binary search tree from a regular binary tree is

  1. All nodes of the left subtree are not exactly the root node
  2. All nodes of the right subtree are more than the root node
  3. Both subtrees of every node are likewise BSTs for example they have the above two properties

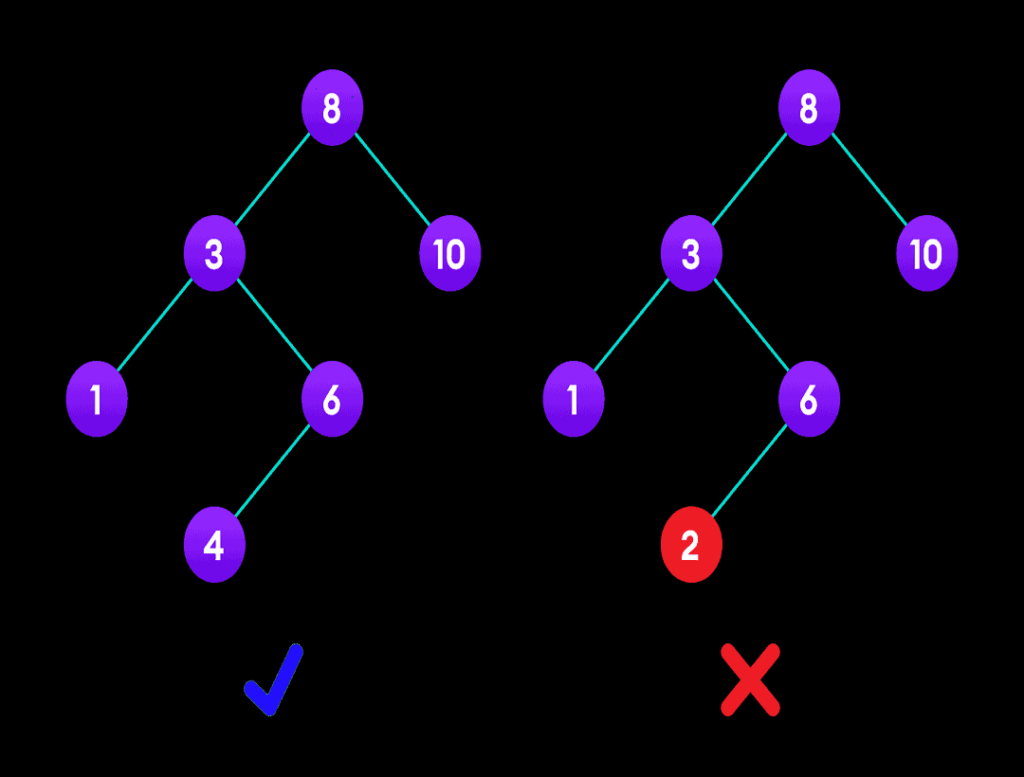

The binary tree on the right is certainly not a binary search tree because the right subtree of the node “3” contains a worth smaller than it.

There are two essential tasks that you can perform on a binary search tree:


Search Operation

The algorithm relies upon the property of BST that if each left subtree has values underneath root and each right subtree has values above the root.

In the event that the worth is beneath the root, we can say without a doubt that the value isn’t in the right subtree; we need to possibly look in the left subtree and if the value is above the root, we can say without a doubt that the value isn’t in the left subtree; we need to just search in the right subtree.

Algorithm:

If root == NULL
    return NULL;
If number == root->data
    return root->data;
If number < root->data
    return search(root->left)
If number > root->data
    return search(root->right)

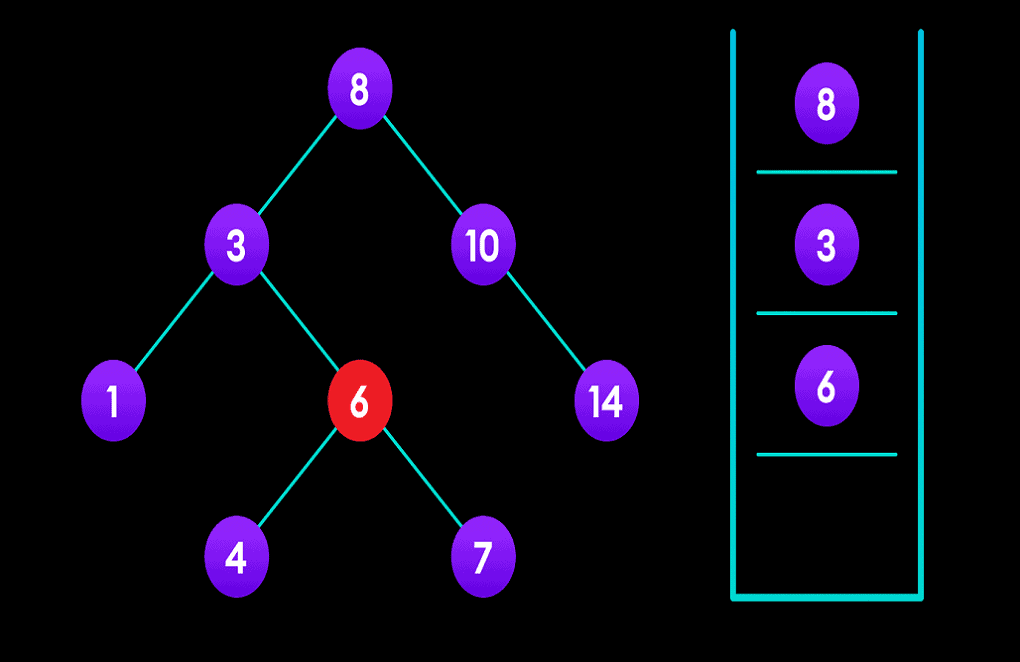

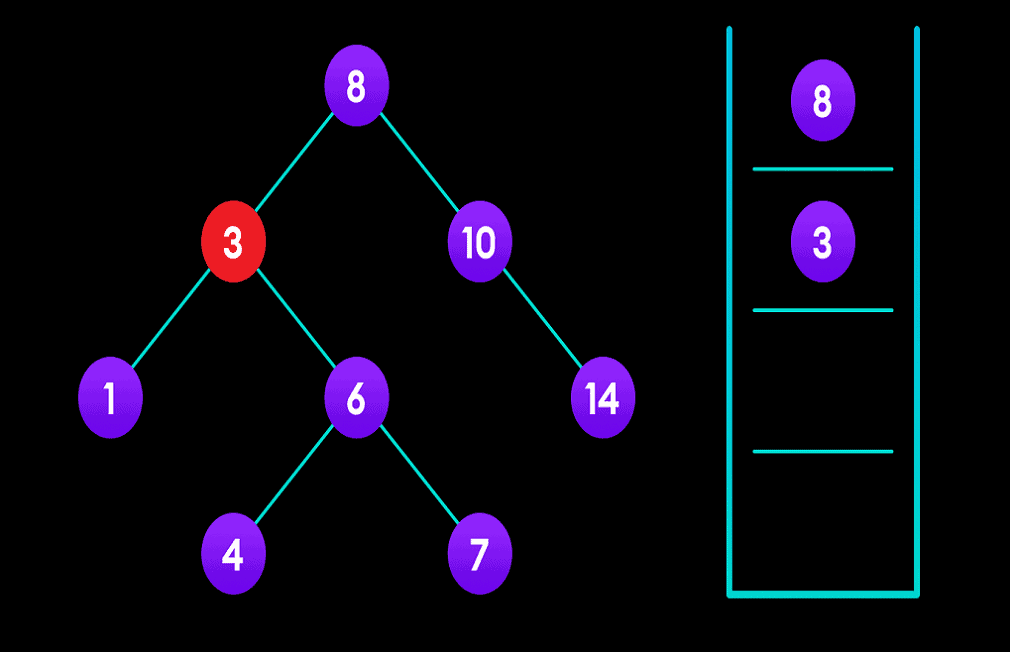

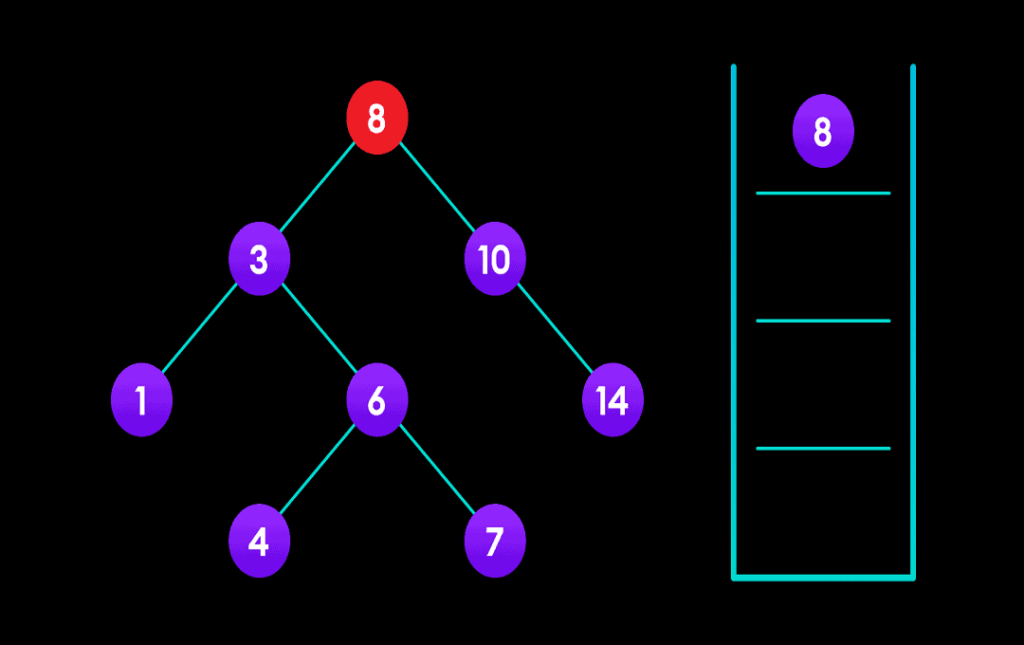

Let us try to visualize this with a diagram.

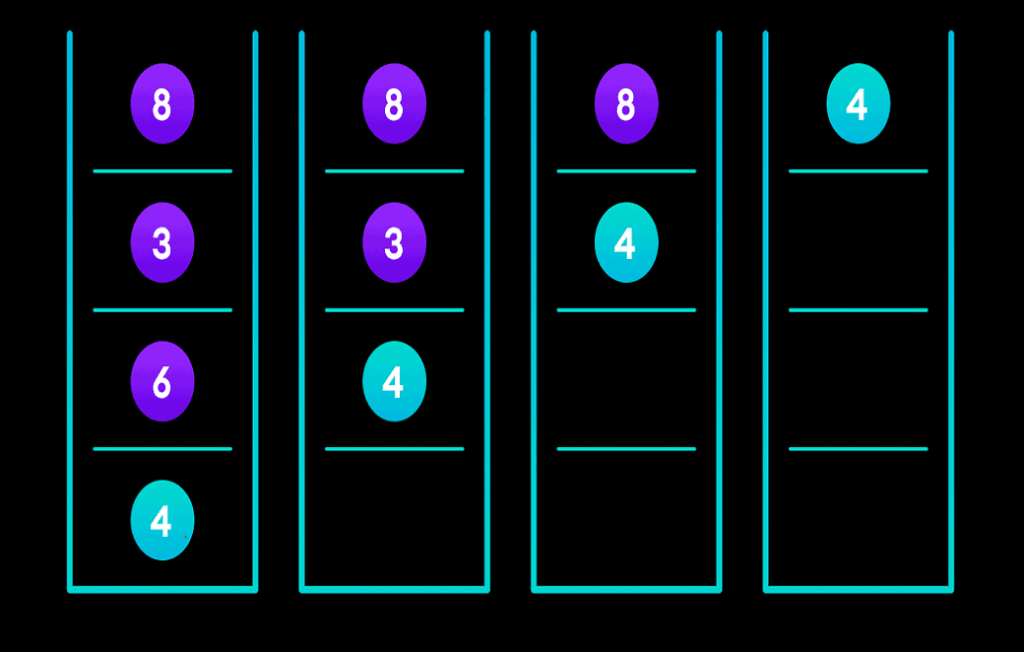

On the off chance that the value is discovered, we return the value so it gets spread in every recursion step as demonstrated in the picture underneath.

In the event that you may have seen it, we have called return search(struct node*) four times. At the point when we return either the new node or NULL, the value gets returned again and again until search(root) returns the eventual outcome.

On the off chance that the value isn’t discovered, we, in the end, arrive at the left or right child of a leaf node which is NULL and it gets propagated and returned.


Insert Operation

Inserting a value in the correct position is like looking since we attempt to keep up the standard that the left subtree is lesser than the root and the right subtree is larger than root.

We continue to go to either right subtree or left subtree relying upon the value and when we arrive at a point left or right subtree is null, we put the new node there.

Algorithm:

If node == NULL
    return createNode(data)
if (data < node->data)
    node->left  = insert(node->left, data);
else if (data > node->data)
    node->right = insert(node->right, data);
return node;

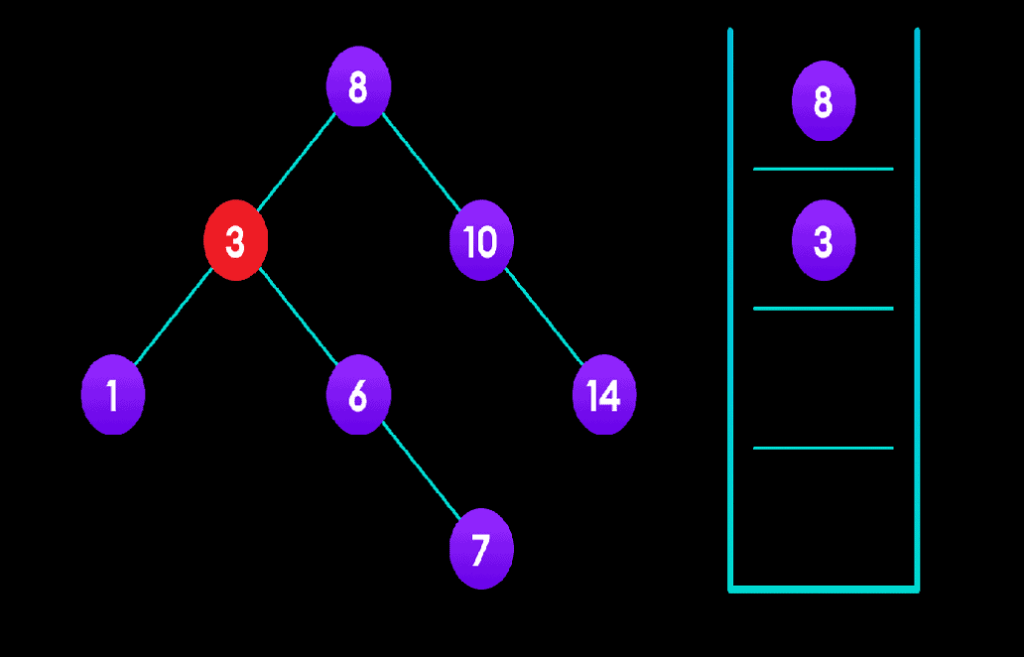

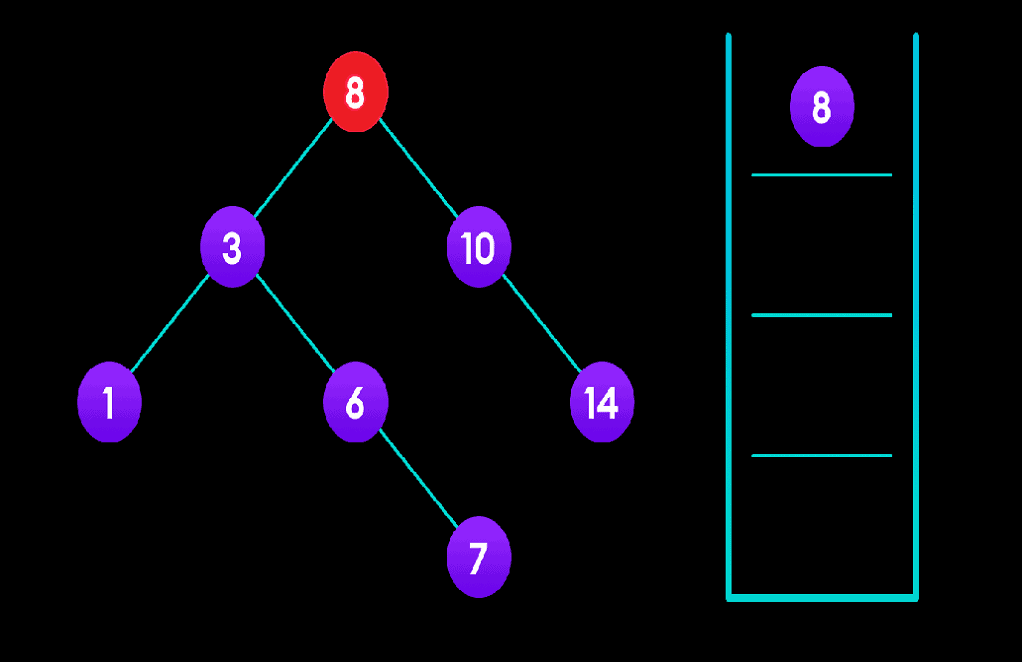

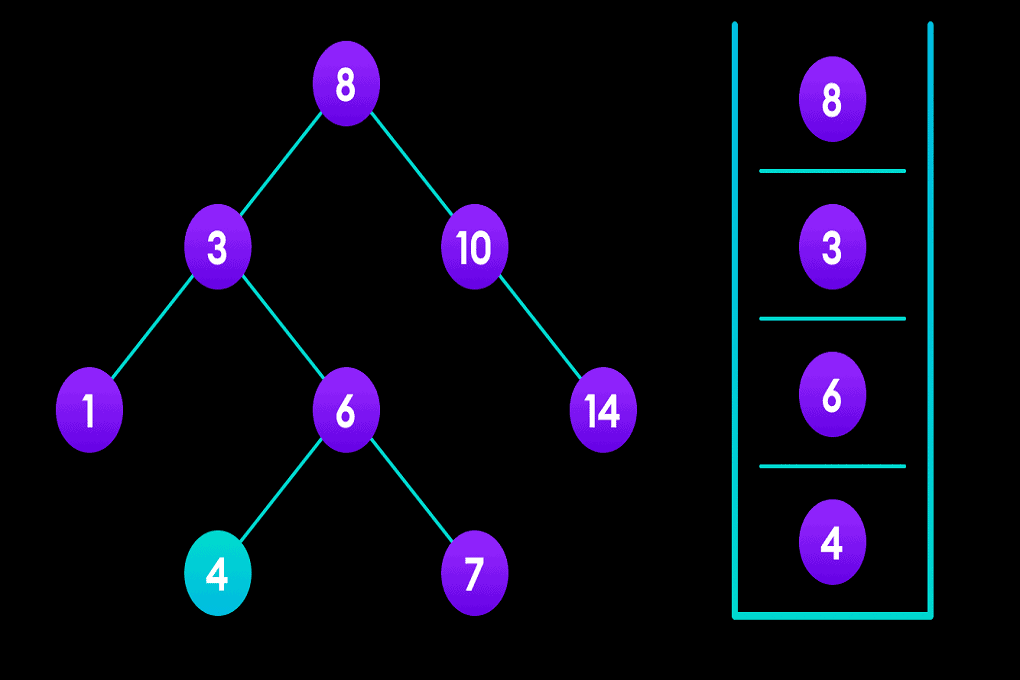

The algorithm isn’t pretty much as basic as it looks. Let’s attempt to visualize how we add a number to a current BST.

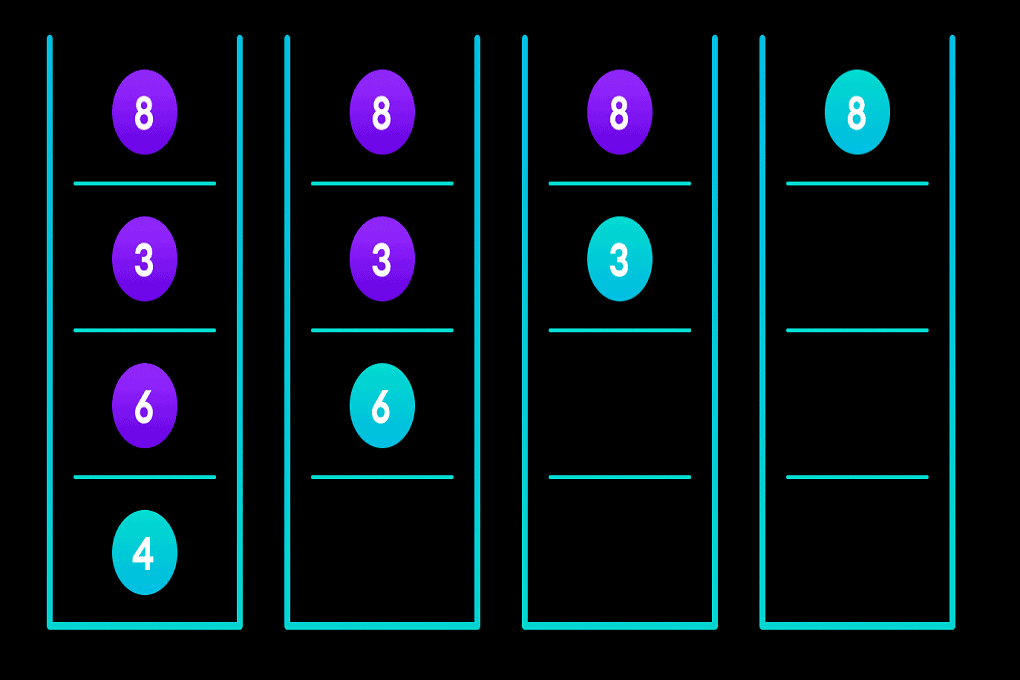

We have joined the node however we actually need to exit from the function without doing any damage to the rest of the tree. This is the place where the return node; toward the end proves to be useful. In the case of NULL, the recently created node is returned and connected to the parent node, in any case, a similar node is returned with no change as we go up until we get back to the root.

This ensures that as we move back up the tree, the other node associations aren’t changed.


Deletion Operation

There are three cases for erasing a node from a paired pursuit tree.

Case I

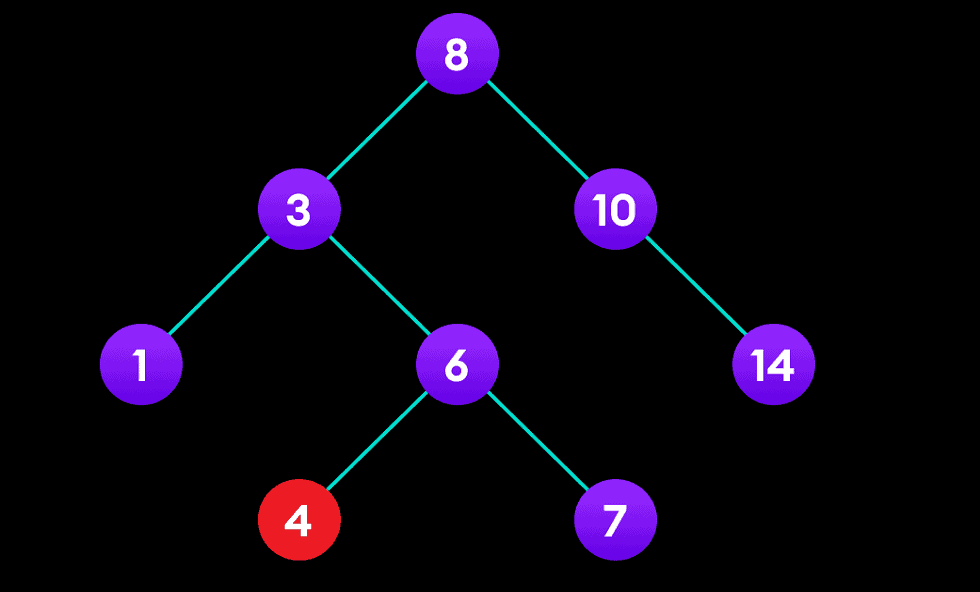

In the first case, the node to be erased is the leaf node. In such a case, essentially erase the node from the tree.

Case II

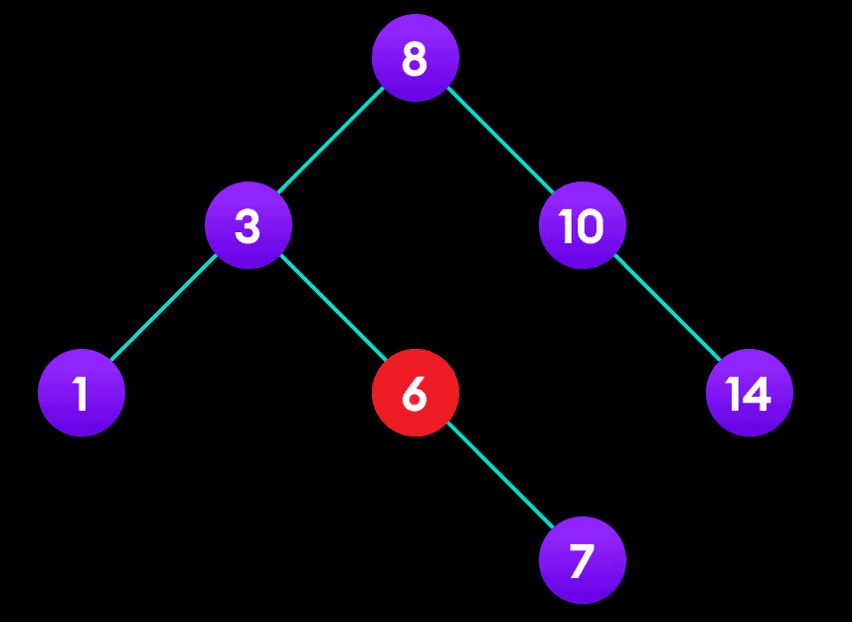

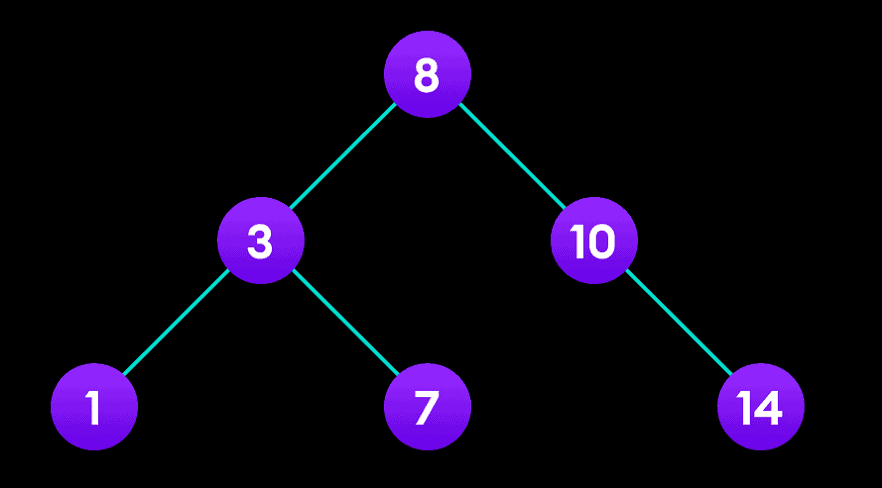

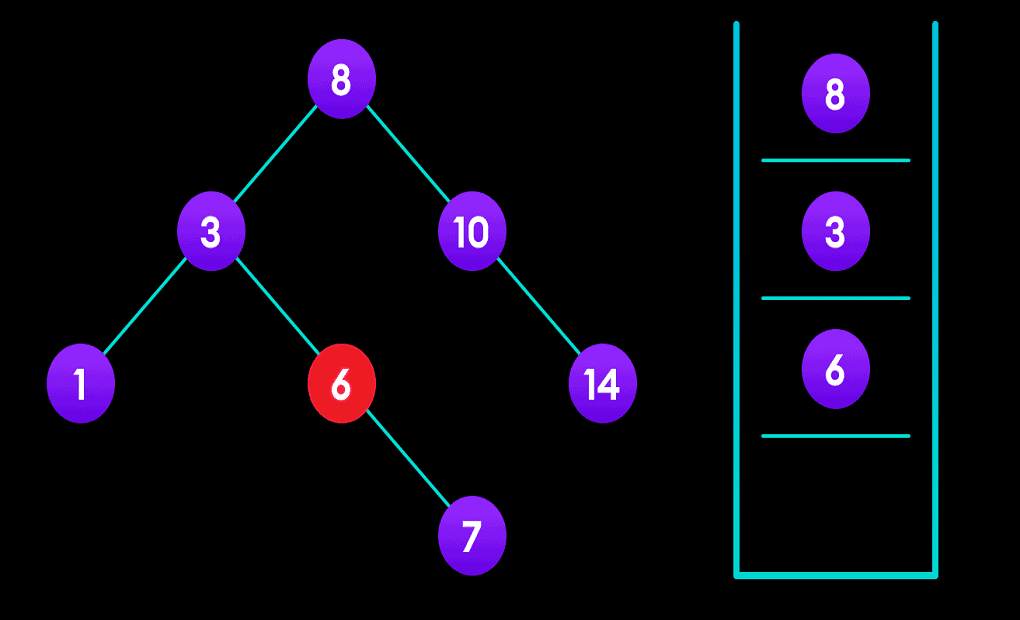

In the subsequent case, the node to be erased lies has a single child node. In such a case follow the steps underneath:

  1. Replace that node with its child node.
  2. Eliminate the child node from its original position.

Case III

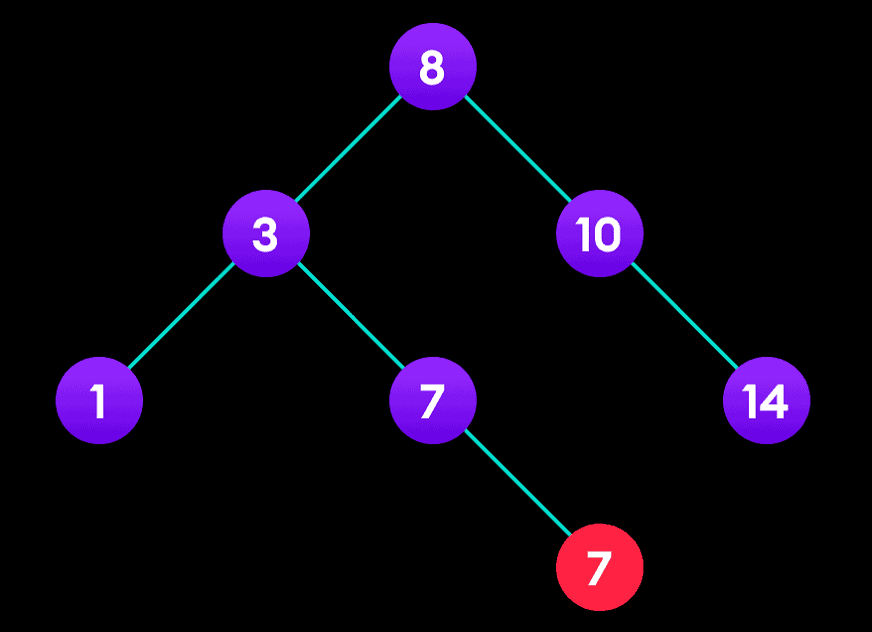

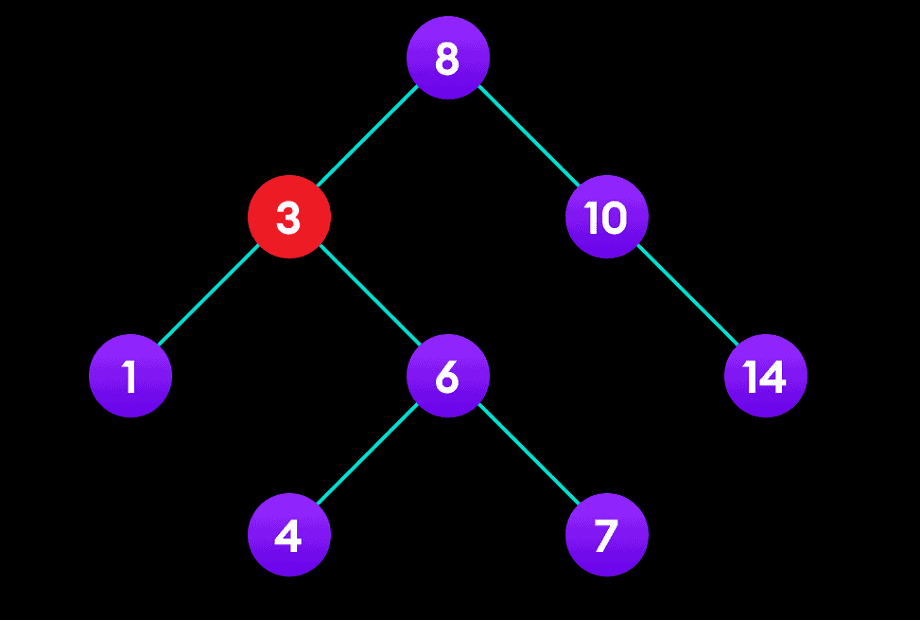

In the third case, the node to be erased has two children. In such a case follow the steps underneath:

  1. Get the inorder successor of that node.
  2. Replace the node with the inorder successor.
  3. Eliminate the inorder successor from its original position.

Python, Java and C/C++ Examples

Python

# Binary Search Tree operations in Python


# Create a node
class Node:
    def __init__(self, key):
        self.key = key
        self.left = None
        self.right = None


# Inorder traversal
def inorder(root):
    if root is not None:
        # Traverse left
        inorder(root.left)

        # Traverse root
        print(str(root.key) + "->", end=' ')

        # Traverse right
        inorder(root.right)


# Insert a node
def insert(node, key):

    # Return a new node if the tree is empty
    if node is None:
        return Node(key)

    # Traverse to the right place and insert the node
    if key < node.key:
        node.left = insert(node.left, key)
    else:
        node.right = insert(node.right, key)

    return node


# Find the inorder successor
def minValueNode(node):
    current = node

    # Find the leftmost leaf
    while(current.left is not None):
        current = current.left

    return current


# Deleting a node
def deleteNode(root, key):

    # Return if the tree is empty
    if root is None:
        return root

    # Find the node to be deleted
    if key < root.key:
        root.left = deleteNode(root.left, key)
    elif(key > root.key):
        root.right = deleteNode(root.right, key)
    else:
        # If the node is with only one child or no child
        if root.left is None:
            temp = root.right
            root = None
            return temp

        elif root.right is None:
            temp = root.left
            root = None
            return temp

        # If the node has two children,
        # place the inorder successor in position of the node to be deleted
        temp = minValueNode(root.right)

        root.key = temp.key

        # Delete the inorder successor
        root.right = deleteNode(root.right, temp.key)

    return root


root = None
root = insert(root, 8)
root = insert(root, 3)
root = insert(root, 1)
root = insert(root, 6)
root = insert(root, 7)
root = insert(root, 10)
root = insert(root, 14)
root = insert(root, 4)

print("Inorder traversal: ", end=' ')
inorder(root)

print("\nDelete 10")
root = deleteNode(root, 10)
print("Inorder traversal: ", end=' ')
inorder(root)

Java

// Binary Search Tree operations in Java

class BinarySearchTree {
  class Node {
    int key;
    Node left, right;

    public Node(int item) {
      key = item;
      left = right = null;
    }
  }

  Node root;

  BinarySearchTree() {
    root = null;
  }

  void insert(int key) {
    root = insertKey(root, key);
  }

  // Insert key in the tree
  Node insertKey(Node root, int key) {
    // Return a new node if the tree is empty
    if (root == null) {
      root = new Node(key);
      return root;
    }

    // Traverse to the right place and insert the node
    if (key < root.key)
      root.left = insertKey(root.left, key);
    else if (key > root.key)
      root.right = insertKey(root.right, key);

    return root;
  }

  void inorder() {
    inorderRec(root);
  }

  // Inorder Traversal
  void inorderRec(Node root) {
    if (root != null) {
      inorderRec(root.left);
      System.out.print(root.key + " -> ");
      inorderRec(root.right);
    }
  }

  void deleteKey(int key) {
    root = deleteRec(root, key);
  }

  Node deleteRec(Node root, int key) {
    // Return if the tree is empty
    if (root == null)
      return root;

    // Find the node to be deleted
    if (key < root.key)
      root.left = deleteRec(root.left, key);
    else if (key > root.key)
      root.right = deleteRec(root.right, key);
    else {
      // If the node is with only one child or no child
      if (root.left == null)
        return root.right;
      else if (root.right == null)
        return root.left;

      // If the node has two children
      // Place the inorder successor in position of the node to be deleted
      root.key = minValue(root.right);

      // Delete the inorder successor
      root.right = deleteRec(root.right, root.key);
    }

    return root;
  }

  // Find the inorder successor
  int minValue(Node root) {
    int minv = root.key;
    while (root.left != null) {
      minv = root.left.key;
      root = root.left;
    }
    return minv;
  }

  // Driver Program to test above functions
  public static void main(String[] args) {
    BinarySearchTree tree = new BinarySearchTree();

    tree.insert(8);
    tree.insert(3);
    tree.insert(1);
    tree.insert(6);
    tree.insert(7);
    tree.insert(10);
    tree.insert(14);
    tree.insert(4);

    System.out.print("Inorder traversal: ");
    tree.inorder();

    System.out.println("\n\nAfter deleting 10");
    tree.deleteKey(10);
    System.out.print("Inorder traversal: ");
    tree.inorder();
  }
}

C

// Binary Search Tree operations in C

#include <stdio.h>
#include <stdlib.h>

struct node {
  int key;
  struct node *left, *right;
};

// Create a node
struct node *newNode(int item) {
  struct node *temp = (struct node *)malloc(sizeof(struct node));
  temp->key = item;
  temp->left = temp->right = NULL;
  return temp;
}

// Inorder Traversal
void inorder(struct node *root) {
  if (root != NULL) {
    // Traverse left
    inorder(root->left);

    // Traverse root
    printf("%d -> ", root->key);

    // Traverse right
    inorder(root->right);
  }
}

// Insert a node
struct node *insert(struct node *node, int key) {
  // Return a new node if the tree is empty
  if (node == NULL) return newNode(key);

  // Traverse to the right place and insert the node
  if (key < node->key)
    node->left = insert(node->left, key);
  else
    node->right = insert(node->right, key);

  return node;
}

// Find the inorder successor
struct node *minValueNode(struct node *node) {
  struct node *current = node;

  // Find the leftmost leaf
  while (current && current->left != NULL)
    current = current->left;

  return current;
}

// Deleting a node
struct node *deleteNode(struct node *root, int key) {
  // Return if the tree is empty
  if (root == NULL) return root;

  // Find the node to be deleted
  if (key < root->key)
    root->left = deleteNode(root->left, key);
  else if (key > root->key)
    root->right = deleteNode(root->right, key);

  else {
    // If the node is with only one child or no child
    if (root->left == NULL) {
      struct node *temp = root->right;
      free(root);
      return temp;
    } else if (root->right == NULL) {
      struct node *temp = root->left;
      free(root);
      return temp;
    }

    // If the node has two children
    struct node *temp = minValueNode(root->right);

    // Place the inorder successor in the position of the node to be deleted
    root->key = temp->key;

    // Delete the inorder successor
    root->right = deleteNode(root->right, temp->key);
  }
  return root;
}

// Driver code
int main() {
  struct node *root = NULL;
  root = insert(root, 8);
  root = insert(root, 3);
  root = insert(root, 1);
  root = insert(root, 6);
  root = insert(root, 7);
  root = insert(root, 10);
  root = insert(root, 14);
  root = insert(root, 4);

  printf("Inorder traversal: ");
  inorder(root);

  printf("\nAfter deleting 10\n");
  root = deleteNode(root, 10);
  printf("Inorder traversal: ");
  inorder(root);
}

c++

// Binary Search Tree operations in C++

#include <iostream>
using namespace std;

struct node {
  int key;
  struct node *left, *right;
};

// Create a node
struct node *newNode(int item) {
  struct node *temp = (struct node *)malloc(sizeof(struct node));
  temp->key = item;
  temp->left = temp->right = NULL;
  return temp;
}

// Inorder Traversal
void inorder(struct node *root) {
  if (root != NULL) {
    // Traverse left
    inorder(root->left);

    // Traverse root
    cout << root->key << " -> ";

    // Traverse right
    inorder(root->right);
  }
}

// Insert a node
struct node *insert(struct node *node, int key) {
  // Return a new node if the tree is empty
  if (node == NULL) return newNode(key);

  // Traverse to the right place and insert the node
  if (key < node->key)
    node->left = insert(node->left, key);
  else
    node->right = insert(node->right, key);

  return node;
}

// Find the inorder successor
struct node *minValueNode(struct node *node) {
  struct node *current = node;

  // Find the leftmost leaf
  while (current && current->left != NULL)
    current = current->left;

  return current;
}

// Deleting a node
struct node *deleteNode(struct node *root, int key) {
  // Return if the tree is empty
  if (root == NULL) return root;

  // Find the node to be deleted
  if (key < root->key)
    root->left = deleteNode(root->left, key);
  else if (key > root->key)
    root->right = deleteNode(root->right, key);
  else {
    // If the node is with only one child or no child
    if (root->left == NULL) {
      struct node *temp = root->right;
      free(root);
      return temp;
    } else if (root->right == NULL) {
      struct node *temp = root->left;
      free(root);
      return temp;
    }

    // If the node has two children
    struct node *temp = minValueNode(root->right);

    // Place the inorder successor in the position of the node to be deleted
    root->key = temp->key;

    // Delete the inorder successor
    root->right = deleteNode(root->right, temp->key);
  }
  return root;
}

// Driver code
int main() {
  struct node *root = NULL;
  root = insert(root, 8);
  root = insert(root, 3);
  root = insert(root, 1);
  root = insert(root, 6);
  root = insert(root, 7);
  root = insert(root, 10);
  root = insert(root, 14);
  root = insert(root, 4);

  cout << "Inorder traversal: ";
  inorder(root);

  cout << "\nAfter deleting 10\n";
  root = deleteNode(root, 10);
  cout << "Inorder traversal: ";
  inorder(root);
}

Binary Search Tree Complexities

Time Complexity

OperationBest Case ComplexityAverage Case ComplexityWorst Case Complexity
SearchO(log n)O(log n)O(n)
InsertionO(log n)O(log n)O(n)
DeletionO(log n)O(log n)O(n)

Here, n is the number of nodes in the tree.

Space Complexity
The space complexity for all the operations is O(n).


Binary Search Tree Applications

  1. In multilevel indexing in the database
  2. For dynamic sorting
  3. For managing virtual memory areas in Unix kernel

Thanks for reading! We hope you found this tutorial helpful and we would love to hear your feedback in the Comments section below. And show us what you’ve learned by sharing your photos and creative projects with us.

salman khan

Written by worldofitech

Leave a Reply

Balanced Binary Tree

Balanced Binary Tree

AVL Tree

AVL Tree
